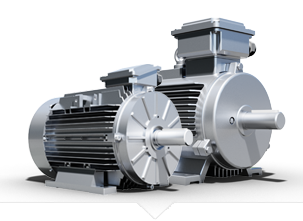

Motores NEMA Premium para Uso Severo Marca Wolong Electric Industrial Motors

Description

Nuestra garantía estándar es de cinco años. El programa de garantía exhaustiva cubre el rendimiento mecánico y la eficiencia NEMA Premium (60 meses en operación/66 meses máximo desde embarque).

La tecnología XSD Ultra cumple con un balance de alta precisión cumpliendo con la normativa “ISO 1940 Grade 1.0 Precision Plus balance” de 0.40 in/sec para una operación suave y confiable, así como la prolongación de la vida de los rodamientos.

Nuestro sistema de aislamiento GEGARD clase H está diseñado para trabajar con variadores de frecuencia superando a otros diseños inferiores que pueden provocar cortos circuitos en la operación provocando una condición de sobrecorriente.

Diseñados para una larga vida de rodamientos cumpliendo hasta 130,000 horas L10 en un acoplamiento directo y 26,280 horas L10 en un acoplamiento por polea sin factores de ajuste de vida.

Pruebas completas siguiendo la NEMA MG1 parte 12, el estándar IEEE 112, siguiendo el método B en un 2% de nuestra producción completa. Verificación del cumplimiento y reportes de pruebas de rutina son suministrados con cada motor XSD ULTRA. Cada motor 841 es suministrado con su propio reporte de prueba demostrando el cumplimiento con la especificación IEEE 841-2009.

Modelos de catálogo ULTRA XSD pueden estar listados por UL, CSA o GE auto declarados para ambientes de División 2 o modificados para cumplir con ATEX Zona 2 o requerimientos CE.

​

Especificaciones Técnicas:

0.75-300 HP, 900-3600 RPM
230/460, 460, 575V / 60 Hz
Placa de datos alternativa a 50 Hz
TEFC (IP55) y ODP
Armazones: 143T-449T
NEMA, UL, CSA, IEEE 45, 841, 112B, y GM 7E-TA
Aplicaciones División 2
C-Face y alto-par
Modelos con diseño “C” disponibles



Algunos modelos son: 5KS143SAA408, 5KS143XAA408, 5KS143XAA404, 5KS143XAA308, 5KS143XAA304, 5KS143SAA305, 5KS145XAA408, 5KS145XAA404, 5KS145SAA405, 5KS143XAA122, 5KS143XAA120, 5KS143SAA121, 5KS143XAA208, 5KS143XAA204, 5KS143SAA205, 5KS145XAA308, 5KS145XAA304, 5KS145SAA305, 5KS182SAA408, 5KS182SAA404, 5KS182SAA405, 5KS143XAA108, 5KS143XAA104, 5KS143SAA105, 5KS145XAA208, 5KS145XAA204, 5KS145SAA221, 5KS182SAA308, 5KS182SAA304, 5KS182SAA305, 5KS184SAA408, 5KS184SAA404, 5KS184SAA405, 5KS143SAA108, 5KS145XAA108, 5KS145XAA104, 5KS145SAA105, 5KS145XAA220, 5KS145XAA223, 5KS145SAA205, 5KS184SAA308, 5KS184SAA304, 5KS184SAA305, 5KS213SAA408, 5KS213SAA404, 5KS213SAA405, 5KS182SAA108, 5KS182SAA104, 5KS182SAA105, 5KS182SAA208, 5KS182SAA204, 5KS182SAA205, 5KS213SAA308, 5KS213SAA304, 5KS213SAA305, 5KS215SAA408, 5KS215SAA404, 5KS215SAA405, 5KS184SAA108, 5KS184SAA104, 5KS184SAA105, 5KS184SAA208, 5KS184SAA204, 5KS184SAA205, 5KS215SAA308, 5KS215SAA304, 5KS215SAA305, 5KS254SAA408, 5KS254SAA404, 5KS254SAA405, 5KS213SAA108, 5KS213SAA104, 5KS213SAA105, 5KS213SAA208, 5KS213SAA204, 5KS213SAA205, 5KS254SAA308, 5KS254SAA304, 5KS254SAA305, 5KS256SAA408, 5KS256SAA404, 5KS256SAA405, 5KS215SAA108, 5KS215SAA104, 5KS215SAA105, 5KS215SAA208, 5KS215SAA204, 5KS215SAA205, 5KS256SAA308, 5KS256SAA304, 5KS256SAA305, 5KS284SAA408, 5KS284SAA404, 5KS284SAA405, 5KS254SAA108, 5KS254SAA104, 5KS254SAA105, 5KS254SAA208, 5KS254SAA204, 5KS254SAA205, 5KS284SAA308, 5KS284SAA304, 5KS284SAA305, 5KS286SAA408, 5KS286SAA404, 5KS286SAA405, 5KS256SAA108, 5KS256SAA104, 5KS256SAA105, 5KS256SAA208, 5KS256SAA204, 5KS256SAA205, 5KS286SAA308, 5KS286SAA304, 5KS286SAA305, 5KS324SAA408, 5KS324SAA404, 5KS324SAA405, 5KS284SAA118, 5KS284SAA108, 5KS284SAA114, 5KS284SAA104, 5KS284SAA115, 5KS284SAA105, 5KS284SAA208, 5KS284SAA204, 5KS284SAA205, 5KS324SAA308, 5KS324SAA304, 5KS324SAA305, 5KS326SAA408, 5KS326SAA404, 5KS326SAA405, 5KS286SAA118, 5KS286SAA108, 5KS286SAA114, 5KS286SAA104, 5KS286SAA115, 5KS286SAA105, 5KS286SAA208, 5KS286SAA204, 5KS286SAA205, 5KS326SAA308, 5KS326SAA304, 5KS326SAA305, 5KS364SAA408, 5KS364SAA404, 5KS364SAA405, 5KS324SAA118, 5KS324SAA108, 5KS324SAA114, 5KS324SAA104, 5KS324SAA115, 5KS324SAA105, 5KS324SAA218, 5KS324SAA208, 5KS324SAA204, 5KS324SAA205, 5KS364SAA308, 5KS364SAA304, 5KS364SAA305, 5KS365SAA408, 5KS365SAA404, 5KS365SAA405, 5KS326SAA108, 5KS326SAA118, 5KS326SAA114, 5KS326SAA104, 5KS326SAA115, 5KS326SAA105, 5KS326SAA218, 5KS326SAA208, 5KS326SAA204, 5KS326SAA205, 5KS365SAA308, 5KS365SAA304, 5KS365SAA305, 5KS404SAA408, 5KS404SAA404, 5KS404SAA405, 5KS364SAA118, 5KS364SAA114, 5KS364SAA115, 5KS364SAA218, 5KS364SAA208, 5KS364SAA204, 5KS364SAA205, 5KS404SAA308, 5KS404SAA304, 5KS404SAA305, 5KS405SAA408, 5KS405SAA404, 5KS405SAA405, 5KS365SAA118, 5KS365SAA114, 5KS365SAA115, 5KS365SAA218, 5KS365SAA208, 5KS365SAA204, 5KS365SAA205, 5KS405SAA308, 5KS405XAA370, 5KS405SAA304, 5KS405XAA379, 5KS405SAA305, 5KS444SAA408, 5KS444SAA404, 5KS444SAA405, 5KS405SAA118, 5KS405SAA114, 5KS405SAA218, 5KS405SAA208, 5KS405XAA2088, 5KS405SAA204, 5KS405XAA2122, 5KS444SAA308, 5KS444XAA366, 5KS444SAA304, 5KS444XAA373, 5KS445SAA408, 5KS445SAA404, 5KS444SAA118, 5KS444SAA114, 5KS444SAA218, 5KS444SAA208, 5KS444SAA2018, 5KS444SAA204, 5KS445SAA308, 5KS445XAA371, 5KS445SAA304, 5KS445SAA352, 5KS447SAA408, 5KS447SAA404, 5KS445SAA118, 5KS445SAA114, 5KS445SAA218, 5KS445SAA208, 5KS445XAA2054, 5KS445SAA204, 5KS445XAA2083, 5KS447SAA308, 5KS447XAA363, 5KS447SAA304, 5KS447SAA344, 5KS449SAA408, 5KS449SAA404, 5KS447SAA118, 5KS447SAA114, 5KS445SAA209, 5KS447SAA201, 5KS447SAA208, 5KS447SAA204, 5KS447SAA2047, 5KS449SAA308, 5KS449SAA382, 5KS449SAA319, 5KS449SAA304, 5KS449SAA383, 5KS449SAA118, 5KS449SAA146, 5KS449SAA122, 5KS449SAA1007, 5KS449SAA201, 5KS449XAA352, 5KS449SAA202, 5KS449SAA204, 5KS449SAA301, 5KS449SAA384, 5KS449SAA385, 5KS449SAA386, 5KS449SAA123, 5KS449SAA1008, 5KS449SAA124, 5KS449SAA1009, 5KS449SAA212, 5KS449SAA209, 5KS449SAA254, 5KS449SAA223, 5KS143SAA302, 5KS143SAA202, 5KS143SAA200, 5KS145SAA302, 5KS145SAA224, 5KS145SAA200, 5KS182SAA300, 5KS145SAA202, 5KS184SAA300, 5KS182SAA100, 5KS182SAA200, 5KS213SAA300, 5KS184SAA100, 5KS184SAA200, 5KS215SAA300, 5KS213SAA100, 5KS213SAA200, 5KS254SAA300, 5KS215SAA100, 5KS215SAA200, 5KS256SAA300, 5KS254SAA100, 5KS254SAA200, 5KS284SAA300, 5KS256SAA100, 5KS256SAA200, 5KS286SAA300, 5KS284SAA100, 5KS284SAA200, 5KS286SAA100, 5KS286SAA200, 5KS324SAA152, 5KS324SAA2007, 5KS326SAA146, 5KS326SAA271, 5KS444XAA204, 5KS444XAA2058, 5KS445XAA308, 5KS445XAA371, 5KS445XAA304, 5KS445XAA380, 5KS447XAA408, 5KS447XAA404, 5KS445XAA118, 5KS445XAA114, 5KS445XAA218, 5KS445XAA208, 5KS445XAA2054, 5KS445XAA204, 5KS445XAA2083, 5KS447XAA308, 5KS447XAA363, 5KS447XAA304, 5KS447XAA374, 5KS449XAA408, 5KS449XAA404, 5KS447XAA118, 5KS447XAA114, 5KS445XAA209, 5KS447XAA208, 5KS447XAA2044, 5KS447XAA218, 5KS447XAA204, 5KS447XAA2045, 5KS449XAA308, 5KS449XAA350, 5KS449XAA304, 5KS449XAA351, 5KS449XAA409, 5KS449XAA439, 5KS449XAA123, 5KS449XAA125, 5KS449XAA124, 5KS449XAA143, 5KS449XAA224, 5KS449XAA287, 5KS449XAA225, 5KS449XAA288, 5KS449XAA337, 5KS449XAA352, 5KS449XAA345, 5KS449XAA353, 5KS449XAA134, 5KS449XAA144, 5KS449XAA145, 5KS449XAA146, 5KS449XAA208, 5KS449XAA289, 5KS449XAA275, 5KS449XAA275, 5KS449XAH308, 5KS284XAA139, 5KS284XAA1007, 5KS284XAA200, 5KS284XAA2036, 5KS324XAA353, 5KS286XAA100, 5KS286XAA128, 5KS286XAA181, 5KS286XAA200, 5KS286XAA2027, 5KS326XAA340, 5KS324XAA175, 5KS324XAA1106, 5KS324XAA279, 5KS324XAA2146, 5KS326XAA155, 5KS326XAA1035, 5KS326XAA263, 5KS326XAA2083, 5KS364XAA100, 5KS364XAA200, 5KS365XAA100, 5KS365XAA200, 5KS405XAA100, 5KS405XAA200, 5KS444XAA100, 5KS444XAA200, 5KS445XAA100, 5KS445XAA200, 5KS447XAA100, 5KS447XAA200, 5KS449XAA100, 5KS449XAA200, 5KS184XAA221W8, 5KS213XAA220W8, 5KS215XAA220W8, 5KS254XAA221W8, 5KS256XAA223W8, 5KS284XAA220W8, 5KS286XAA222W8, 5KS324XAA271W8, 5KS326XAA253W8, 5KS364XAA249W8, 5KS364XAA250W6, 5KS365XAA253W6, 5KS365XAA254W8, 5KGS324SAA208, 5KGS364SAA320, 5KGS326SAA208, 5KGS365SAA320, 5KGS364SAA208, 5KGS364SAA220, 5KGS404SAA320, 5KGS365SAA208, 5KGS365SAA220, 5KGS405SAA321, 5KGS405SAA208, 5KGS405SAA22, 5KGS444SAA320, 5KGS444SAA208, 5KGS444SAA220, 5KGS445SAA320, 5KGS445SAA208, 5KGS445SAA220, 5KGS447SAA320, 5KGS447SAA208, 5KGS447SAA220, 5KGS449SAA321, 5KGS449SAA208, 5KGS449SAA222, 5KGS511SAA339, 5KGS449SAA224, 5KGS511SAA340, 5KGS509SAA226, 5KGS511SAA338, 5KGS509SAA225, 5KGS511SAA336, 5KGS511SAA226, 5KGS511SAA224, 5KAF286SAA202, 5KAF326SAA322, 5KAF324SAA222, 5KAF364SAA322, 5KAF326SAA222, 5KAF365SAA323, 5KAF364SAA222, 5KAF364SAA223, 5KAF404SAA323, 5KAF404SAA324, 5KAF365SAA223, 5KAF365SAA224, 5KAF405SAA323, 5KAF405SAA331, 5KAF405SAA221, 5KAF405SAA220, 5KAF444SAA321, 5KAF444SAA322, 5KAF444SAA220, 5KAF444SAA221, 5KAF445SAA321, 5KAF445SAA322, 5KAF445SAA220, 5KAF445SAA221, 5KAF447SAA322, 5KAF447SAA323, 5KAF447SAA220, 5KAF447SAA221, 5KAF449SAA324, 5KAF449SAA325, 5KAF449SAA221, 5KAF449SAA222, 5KAF449SAA223, 5KAF449SAA224, 5KS445SAA1001.
